The low bed trailer for sale in Mauritania design gives low low bed trailer a lower center of gravity, improving stability and safety, especially when loading heavy. The low low bed trailer height design allows for easy access by forklifts or other loading and unloading equipment, reducing loading and unloading time and improving transportation efficiency.
100 Ton Low Bed Trailer for Sale in Mauritania,Nouadhibou
The low bed trailer for sale in Mauritania are usually made of high strength materials and have excellent durability and load bearing capacity, and can cope with complex and harsh transportation environments.
The equal width gooseneck design ensures that the load of the entire vehicle is evenly distributed, can effectively support overweight or large volume cargo, and reduce the pressure concentration on the vehicle body.
Model: 3 axle low bed trailer for sale
Loading capacity: 100 ton
Overall dimension: 16000mm * 3000mm *3400mm
Axles: 3 axles, TITAN Brand
Tire: 11.00R20, 12 units
Rim: 8.0-20
Suspension: Mechanical suspension
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: TITAN brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: HG60 high strength steel.
Bottom Platform: 5mm thick checkered plate
Ramp: Folding hydraulic ramp
Gooseneck: equal-width gooseneck
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
100 Ton Low Bed Trailer for Sale in Mauritania,Nouadhibou

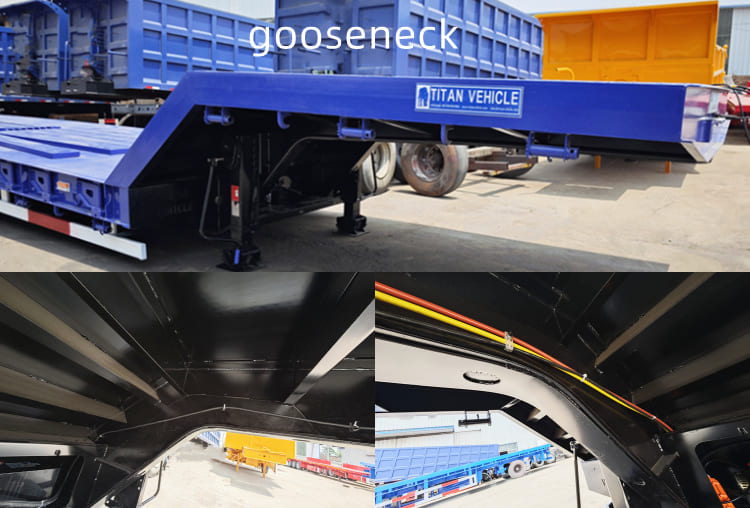

Low bed trailer for sale in Mauritania equal width gooseneck is a special trailer design used to enhance low low bed trailer's stability and handling when connecting and transporting heavy loads.
The equal-width gooseneck makes the connection between low low bed trailer and the tractor more compact, improving the maneuverability of low bed trailer for sale in Mauritania. Due to the compactness of the design, the equal-width gooseneck design helps low bed trailer maintain good body stability when turning, reducing the risk of tilting or loss of control when turning.
100 Ton Low Bed Trailer for Sale in Mauritania,Nouadhibou

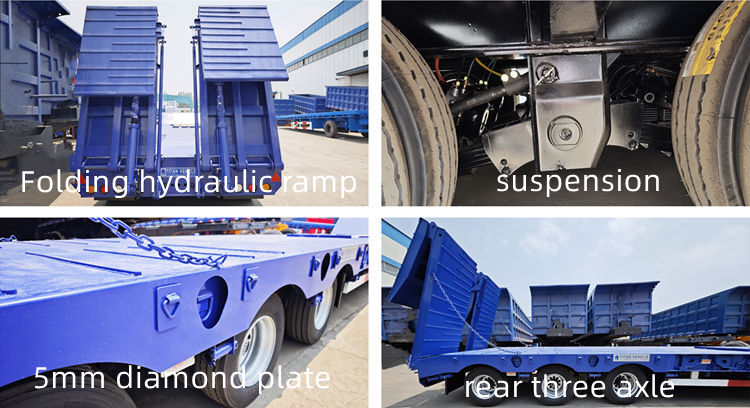

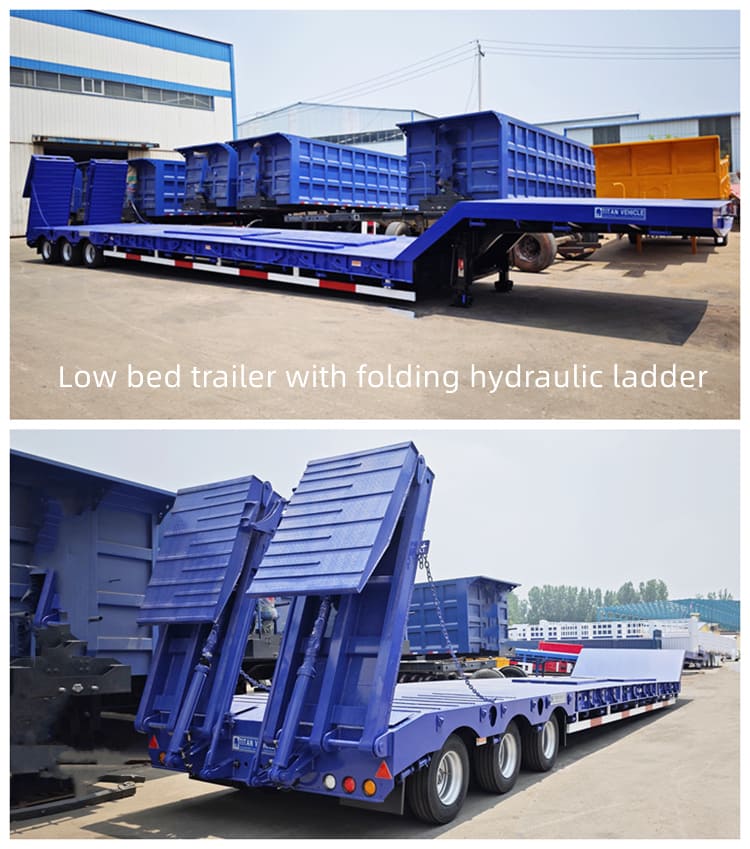

Folding hydraulic ramp is a device commonly used on low bed trailer for sale in Mauritania, especially suitable for transporting heavy machinery and equipment. Low low bed trailer folding hydraulic ramp is equipped with a hydraulic system that provides lifting power through a hydraulic cylinder.
The operator can adjust the angle of the ramp by controlling the hydraulic system to achieve the lifting and folding of the ladder. The hydraulic ladder can provide a smooth transition ramp, allowing the equipment to be smoothly moved from the ground to the trailer, reducing vibration and impact during loading and unloading.
The low low bed trailer suspension system is responsible for supporting the weight of the trailer and its cargo, ensuring that the load is evenly distributed across the wheels. This is especially important for high loads, as the suspension system has to handle the greater weight.
Low bed trailer for sale in Mauritania suspension system maintains the stability of the low bed trailer by reducing the sway and pitch of the vehicle body. This is essential for ensuring the trailer remains stable when traveling at high speeds or on uneven roads.
The reinforcement of the rear three axles can help to share the weight on the low low bed trailer, especially at the rear of low bed trailer for sale in Mauritania. This can increase the overall load-bearing capacity and enable low bed trailer to safely transport heavier loads.
By strengthening the structure of the rear three axles, the overall strength of the trailer can be increased, ensuring that when transporting extra heavy loads, low low bed trailer structure will not be deformed or damaged due to excessive loads.
100 Ton Low Bed Trailer for Sale in Mauritania,Nouadhibou

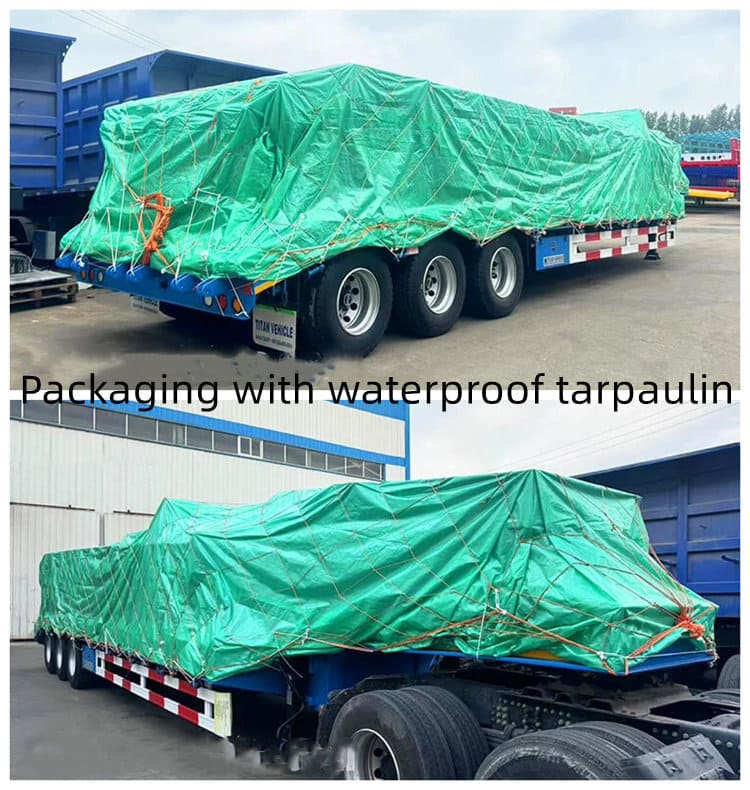

The packaging and shipment of low low bed trailer requires careful operation at every step from the preparation stage to loading, fixing, transporting and unloading to ensure that the goods arrive at the destination safely and stably.
By packaging and shipping in containers or waterproof tarpaulin, transportation efficiency can be improved, the risk of damage can be reduced, and the goods can be ensured to arrive on time and safely.
100 Ton Low Bed Trailer for Sale in Mauritania,Nouadhibou
The Mauritanian customer is very satisfied with the quality of this low low bed trailer, and he reported that low bed trailer for sale stability and durability exceeded their expectations. The performance of this low low bed trailer is excellent, and low bed trailer can handle heavy cargo easily. They will continue to use low low bed trailer and recommend it to other customers.
100 Ton Low Bed Trailer for Sale in Mauritania,Nouadhibou

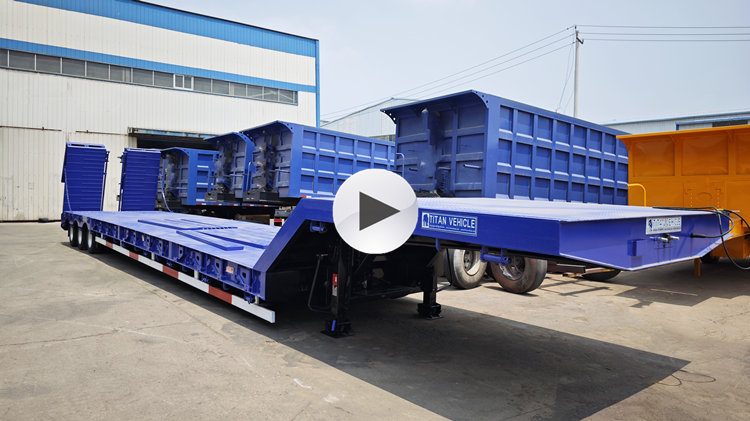

This video shows how the folding hydraulic ramp works and some details of the whole vehicle.. One end of the folding hydraulic ramp is usually connected to the low flatbed of low low bed trailer, and the other end is placed on the ground.
By adjusting the hydraulic system, the angle between the ramp and the ground can be adjusted to suit the loading and unloading of equipment at different heights.
The hydraulic system can quickly adjust the angle of the ramp, improving the efficiency of the loading and unloading process and reducing the time of loading and unloading equipment.
